Ready-to-install drylin® SLW-XY tables

Fast delivery, cost-effective and customised

With linear modules, precise adjustment of a position on a work surface can be carried out. With the drylin® SLW-XY tables, this now becomes easier. igus has developed ready-to-install XY tables suitable for your desired work surface.
  • Only 1 unit for two adjusting directions
  • For a work surface of up to 500mm x 500mm
  • Same stroke lengths or individual configuration
  • Accessories will be delivered at the same time
The SLW-XY tables are available in 4 sizes Components from the drylin® W linear system are used as linear guide.
SLW-XY table drylin E from igus
Improve technology with igus® Tech up
  • Torsionally stable adjustment in two directions
  • Option of same stroke length or individual lengths, self-locking due to trapezoidal thread
  • Fast, smooth operation with dryspin® high helix thread
  • Clearance adjustment and pretension (optional)
Reduce costs with igus® Cost down
  • Reduced construction effort thanks to ready-to-install delivery of a single linear module for both settings
  • Linear guide from the drylin® W linear system
  • Easy configuration involving lead screw clamping, position indicator and hand wheel
igus® demonstrates how it works! Proof
  • Area ratio (installation height/work surface) always ≤ 2
  • Tested for work surfaces up to 500mm x 500mm: TR14x4 trapezoidal thread (SLW-XY-1660), dynamic axial load 500N, stroke length 200mm, feed rate 0.4m/min, speed 100rpm, minimum service life 62,863 double strokes
Plastic to Oil - igus® is sustainable Sustainability
  • Positioning in two directions with one module instead of two
  • Lubrication-free, clean, maintenance-free
  • Learn more about the topic of igus sustainability at: Plastic2Oil
drylin XY tables are lubrication-free

Lubrication-free

drylin XY tables are quiet

Quiet operation

drylin XY tables are corrosion-free

Corrosion-free

drylin XY tables for format adjustment

Format adjustment

drylin XY tables are heat-resistant up to 150°

Temperature-resistant up to +150°C

drylin XY tables are cost-effective

Cost-effective

Technical data and dimensions [mm]

Part No. Max. stroke
length [mm]
 A
-0.3
[mm]
 H

[mm]		 E1
±0.15
[mm]
 E2
±0.15
[mm]		 Base
length lx
[mm]		 Base
length ly
[mm]		 f

[mm]		 lt

[mm]
 tk
±0.1
[mm]		 ts

[mm]		 tg


 kt

[mm]
ready for shipping in 3-4 working days SLW-XY-0630 150 54 38 40 45 94 94 1.5 20 9 7 - 6
ready for shipping in 3-4 working days SLW-XY-0660 300 85 38 71 76 125 125 1.5 20 11 6.6 - 8
ready for shipping in 3-4 working days SLW-XY-1040 300 74 48 60 60 117 117 1.5 22 11 6.8 M8 6.4
ready for shipping in 10 working days SLW-XY-1040-PL (1) 300 74 48 60 60 117 117 1.5 22 11 6.8 M8 6.4
ready for shipping in 10 working days SLW-XY-1080 300 108 48 94 94 151 151 1.5 22 11 6.8 M8 6.4
ready for shipping in 10 working days SLW-XY-1080-PL (1) 300 108 48 94 94 151 151 1.5 22 11 6.8 M8 6.4
ready for shipping in 3-4 working days SLW-XY-1660 400 104 72.5 84 86 154 154 1.5 25 15 9 - 8.6
ready for shipping in 10 working days SLW-XY-2080 500 134 82 116 116 190 190 1.5 28 15 8.6 - 8.6
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

(1) Preload

Part No. sg

 d
[mm]		 T

 l1
[mm]		 d1
standard
 d1
alternative
 l2
[mm]		 d2
standard
 d2
alternative
 ha1
[mm]
 ha2
[mm]		 W
ha2-ha1
[mm]
ready for shipping in 3-4 working days SLW-XY-0630 M4 5 M8 15 M8 M8 15 M8 9.5 28.5 18,4 Upon request Add to shopping cart
ready for shipping in 3-4 working days SLW-XY-0660 M4 5 15 Tr08x1.5 15 - 9.5 28.5 19 Upon request Add to shopping cart
ready for shipping in 3-4 working days SLW-XY-1040 M6 10 17 TR10x2 Tr10x2 17 6h9 14.5 33.5 19 Upon request Add to shopping cart
ready for shipping in 10 working days SLW-XY-1040-PL (1) M6 10 17 TR10x2 Tr10x2 17 6h9 14.5 33.5 19 Upon request Add to shopping cart
ready for shipping in 10 working days SLW-XY-1080 M6 10 17 TR10x2 Tr10x2 17 6h9 14.5 33.5 19 Upon request Add to shopping cart
ready for shipping in 10 working days SLW-XY-1080-PL (1) M6 10 17 TR10x2 Tr10x2 17 6h9 14.5 33.5 19 Upon request Add to shopping cart
ready for shipping in 3-4 working days SLW-XY-1660 M8 16 M8 20 TR14x4 8h9 20 8h9 8h9 18.5 54 35,5 Upon request Add to shopping cart
ready for shipping in 10 working days SLW-XY-2080 M8 20 M8 26 12h9 26 12h9 23 59 36 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

(1) Preload

drylin SLW-XY table from igus

Send a request

Submit an enquiry to drylin experts
Send a request

Download news catalogue

drylin news 2020 linear technology
Go to download

All drylin® news 2020

All drylin news 2020
Overview drylin® news 2020

Test the advantages of the SLW linear module system

A free sample on your desk

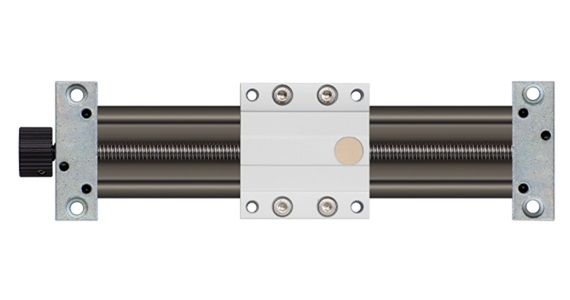

igus SLW linear units with lead screw drive are based on the drylin W linear modular system as well as on maintenance-free and self-lubricating dry-tech high-performance polymers. The lubrication is incorporated into the bearing material, rendering the linear axes and linear module suitable for dry-operating conditions, i.e. they are maintenance-free for their entire service life. See for yourself, ask for a free sample from us.
